2 - Connecting to SpacetimeDB

Need help with the tutorial? Join our Discord server!

This progressive tutorial is continued from part 1.

Project Structure​

Now that we have our client project setup we can configure the module directory. Regardless of what language you choose, your module will always go into a spacetimedb directory within your client directory like this:

blackholio/                      # Unreal project root
├── Binaries/
├── blackholio.sln
├── blackholio.uproject
├── Config/
├── Content/
├── Plugins/
│   └── SpacetimeDbSdk/          # This is where the SpacetimeDB Unreal SDK lives
├── ... rest of Unreal files
└── spacetimedb/                 # This is where the server module lives

Create a Server Module​

note

Ensure you have SpacetimeDB version >=1.4.0 installed to enable Unreal Engine code generation support. You can use spacetime --version to check your version and you can use spacetime version upgrade to install the latest version.

If you have not already installed the spacetime CLI, check out our Getting Started guide for instructions on how to install.

In the same directory that contains your blackholio project, run the following command to initialize the SpacetimeDB server module project with your desired language:

warning

The blackholio directory specified here is the same blackholio directory you created during part 1.

Run the following command to initialize the SpacetimeDB server module project with Rust as the language:

spacetime init --lang rust --server-only --project-path . blackholio

This command creates a new folder named spacetimedb inside of your Unreal project blackholio directory and sets up the SpacetimeDB server project with Rust as the programming language.

SpacetimeDB Tables​

In this section we'll be making some edits to the file blackholio/spacetimedb/src/lib.rs. We recommend you open up this file in an IDE like VSCode or RustRover.

Important: Open the blackholio/spacetimedb/src/lib.rs file and delete its contents. We will be writing it from scratch here.

First we need to add some imports at the top of the file. Some will remain unused for now.

Copy and paste into lib.rs:

use std::time::Duration;
use spacetimedb::{rand::Rng, Identity, SpacetimeType, ReducerContext, ScheduleAt, Table, Timestamp};

We are going to start by defining a SpacetimeDB table. A table in SpacetimeDB is a relational database table which stores rows, similar to something you might find in SQL. SpacetimeDB tables differ from normal relational database tables in that they are stored fully in memory, are blazing fast to access, and are defined in your module code, rather than in SQL.

Each row in a SpacetimeDB table is associated with a struct type in Rust.

Let's start by defining the Config table. This is a simple table which will store some metadata about our game's state. Add the following code to lib.rs.

// We're using this table as a singleton, so in this table
// there will only be one element where the `id` is 0.
#[spacetimedb::table(accessor = config, public)]
pub struct Config {
    #[primary_key]
    pub id: i32,
    pub world_size: i64,
}

Let's break down this code. This defines a normal Rust struct with two fields: id and world_size. We have decorated the struct with the spacetimedb::table macro. This procedural Rust macro signals to SpacetimeDB that it should create a new SpacetimeDB table with the row type defined by the Config type's fields.

The spacetimedb::table macro takes two parameters, an accessor which is the name of the table and what you will use to query the table in SQL, and a public visibility modifier which ensures that the rows of this table are visible to everyone.

The #[primary_key] attribute, specifies that the id field should be used as the primary key of the table.

note

The primary key of a row defines the "identity" of the row. A change to a row which doesn't modify the primary key is considered an update, but if you change the primary key, then you have deleted the old row and inserted a new one.

Learn more about defining tables, including indexes, constraints, and column types, in our Tables documentation.

Creating Entities​

Next, we're going to define a new SpacetimeType called DbVector2 which we're going to use to store positions. The difference between a #[derive(SpacetimeType)] and a #[spacetimedb(table)] is that tables actually store data, whereas the deriving SpacetimeType just allows you to create a new column of that type in a SpacetimeDB table. Therefore, DbVector2 is only a type, and does not define a table.

Append to the bottom of lib.rs:

// This allows us to store 2D points in tables.
#[derive(SpacetimeType, Clone, Debug)]
pub struct DbVector2 {
    pub x: f32,
    pub y: f32,
}

Let's create a few tables to represent entities in our game.

#[spacetimedb::table(accessor = entity, public)]
#[derive(Debug, Clone)]
pub struct Entity {
    // The `auto_inc` attribute indicates to SpacetimeDB that
    // this value should be determined by SpacetimeDB on insert.
    #[auto_inc]
    #[primary_key]
    pub entity_id: i32,
    pub position: DbVector2,
    pub mass: i32,
}

#[spacetimedb::table(accessor = circle, public)]
pub struct Circle {
    #[primary_key]
    pub entity_id: i32,
    #[index(btree)]
    pub player_id: i32,
    pub direction: DbVector2,
    pub speed: f32,
    pub last_split_time: Timestamp,
}

#[spacetimedb::table(accessor = food, public)]
pub struct Food {
    #[primary_key]
    pub entity_id: i32,
}

The first table we defined is the entity table. An entity represents an object in our game world. We have decided, for convenience, that all entities in our game should share some common fields, namely position and mass.

We can create different types of entities with additional data by creating new tables with additional fields that have an entity_id which references a row in the entity table.

We've created two types of entities in our game world: Foods and Circles. Food does not have any additional fields beyond the attributes in the entity table, so the food table simply represents the set of entity_ids that we want to recognize as food.

The Circle table, however, represents an entity that is controlled by a player. We've added a few additional fields to a Circle like player_id so that we know which player that circle belongs to.

Representing Players​

Next, let's create a table to store our player data.

#[spacetimedb::table(accessor = player, public)]
#[derive(Debug, Clone)]
pub struct Player {
    #[primary_key]
    identity: Identity,
    #[unique]
    #[auto_inc]
    player_id: i32,
    name: String,
}

There's a few new concepts we should touch on. First of all, we are using the #[unique] attribute on the player_id field. This attribute adds a constraint to the table that ensures that only one row in the player table has a particular player_id.

We also have an identity field which uses the Identity type. The Identity type is an identifier that SpacetimeDB uses to uniquely assign and authenticate SpacetimeDB users.

Writing a Reducer​

Next, we write our very first reducer. A reducer is a module function which can be called by clients. Let's write a simple debug reducer to see how they work.

#[spacetimedb::reducer]
pub fn debug(ctx: &ReducerContext) -> Result<(), String> {
    log::debug!("This reducer was called by {}.", ctx.sender());
    Ok(())
}

This reducer doesn't update any tables, it just prints out the Identity of the client that called it.

SpacetimeDB Reducers

"Reducer" is a term coined by Clockwork Labs that refers to a function which when executed "reduces" a set of inserts and deletes into the database state. The term derives from functional programming and is closely related to similarly named concepts in other frameworks like React Redux. Reducers can be called remotely using the CLI, client SDK or can be scheduled to be called at some future time from another reducer call.

All reducers execute transactionally and atomically, meaning that from within the reducer it will appear as though all changes are being applied to the database immediately, however from the outside changes made in a reducer will only be applied to the database once the reducer completes successfully. If you return an error from a reducer or panic within a reducer, all changes made to the database will be rolled back, as if the function had never been called. If you're unfamiliar with atomic transactions, it may not be obvious yet just how useful and important this feature is, but once you build a somewhat complex application it will become clear just how invaluable this feature is.

Publishing the Module​

Now that we have some basic functionality, let's publish the module to SpacetimeDB and call our debug reducer.

In a new terminal window, run a local version of SpacetimeDB with the command:

spacetime start

This following log output indicates that SpacetimeDB is successfully running on your machine.

Starting SpacetimeDB listening on 127.0.0.1:3000

Now that SpacetimeDB is running we can publish our module to the SpacetimeDB host. In a separate terminal window, navigate to the blackholio directory.

If you are not already logged in to the spacetime CLI, run the spacetime login command to log in to your SpacetimeDB website account. Once you are logged in, run spacetime publish --server local blackholio. This will publish our Blackholio server logic to SpacetimeDB.

If the publish completed successfully, you will see something like the following in the logs:

Build finished successfully.
Uploading to local => http://127.0.0.1:3000
Publishing module...
Created new database with name: blackholio, identity: c200d2c69b4524292b91822afac8ab016c15968ac993c28711f68c6bc40b89d5

If you sign into spacetime login via GitHub, the token you get will be issued by auth.spacetimedb.com. This will also ensure that you can recover your identity in case you lose it. On the other hand, if you do spacetime login --server-issued-login local, you will get an identity which is issued directly by your local server. Do note, however, that --server-issued-login tokens are not recoverable if lost, and are only recognized by the server that issued them.

spacetime call --server local blackholio debug

If the call completed successfully, that command will have no output, but we can see the debug logs by running:

spacetime logs --server local blackholio

You should see something like the following output:

2025-01-09T16:08:38.144299Z  INFO: spacetimedb: Creating table `circle`
2025-01-09T16:08:38.144438Z  INFO: spacetimedb: Creating table `config`
2025-01-09T16:08:38.144451Z  INFO: spacetimedb: Creating table `entity`
2025-01-09T16:08:38.144470Z  INFO: spacetimedb: Creating table `food`
2025-01-09T16:08:38.144479Z  INFO: spacetimedb: Creating table `player`
2025-01-09T16:08:38.144841Z  INFO: spacetimedb: Database initialized
2025-01-09T16:08:47.306823Z  INFO: src/lib.rs:68: This reducer was called by c200e1a6494dbeeb0bbf49590b8778abf94fae4ea26faf9769c9a8d69a3ec348.

Connecting our Client​

Next let's connect our client to our database. Let's start by modifying our debug reducer. Rename the reducer to be called connect and add client_connected in parentheses after spacetimedb::reducer. The end result should look like this:

#[spacetimedb::reducer(client_connected)]
pub fn connect(ctx: &ReducerContext) -> Result<(), String> {
    log::debug!("{} just connected.", ctx.sender());
    Ok(())
}

The client_connected argument to the spacetimedb::reducer macro indicates to SpacetimeDB that this is a special reducer. This reducer is only ever called by SpacetimeDB itself when a client connects to your database.

SpacetimeDB gives you the ability to define custom reducers that automatically trigger when certain events occur.

  • init - Called the first time you publish your module and anytime you clear the database with spacetime publish --server local <name> --delete-data.
  • client_connected - Called when a user connects to the SpacetimeDB database. Their identity can be found in the sender value of the ReducerContext.
  • client_disconnected - Called when a user disconnects from the SpacetimeDB database.

Publish your module again by running:

spacetime publish --server local blackholio

Generating the Client​

The spacetime CLI has built in functionality to let us generate Unreal C++ types that correspond to our tables, types, and reducers that we can use from our Unreal client.

Let's generate our types for our module. In the blackholio directory run the following command:

spacetime generate --lang unrealcpp --uproject-dir .. --unreal-module-name blackholio

This will generate a set of files in the blackholio/Source/blackholio/Private/ModuleBindings and blackholio/Source/blackholio/Public/ModuleBindings directories which contain the code generated types and reducer functions that are defined in your module, but usable on the client.

note

--uproject-dir is straightforward as the path to the .uproject file. --unreal-module-name is the name of the Unreal module which in most projects is the name of the project, in this case blackholio.

warning

After generating external code with spacetime generate it is highly recommended you restart the Unreal Editor, it can also help to run the Generate project files against the .uproject file.

├── Reducers
├── Tables
│   ├── CircleTable.g.h
│   ├── ConfigTable.g.h
│   ├── EntityTable.g.h
│   ├── FoodTable.g.h
│   └── PlayerTable.g.h
├── Types
│   ├── CircleType.g.h
│   ├── ConfigType.g.h
│   ├── DbVector2Type.g.h
│   ├── EntityType.g.h
│   ├── FoodType.g.h
│   └── PlayerType.g.h
└── ReducerBase.g.h
└── SpacetimeDBClient.g.h

This will also generate a file in the blackholio/Source/blackholio/Private/ModuleBindings/SpacetimeDBClient.g.h directory with a type aware UDbConnection class. We will use this class to connect to your database from Unreal.

Connecting to the Database​

Update blackholio.Build.cs to include the SpacetimeDbSdk. Add SpacetimeDbSdk and Paper2D to PublicDependencyModuleNames, and confirm that PrivateDependencyModuleNames includes the following modules for current and future needs:

        PublicDependencyModuleNames.AddRange(new string[]
        {
            "Core",
            "CoreUObject",
            "Engine",
            "InputCore",
            "EnhancedInput",
            "SpacetimeDbSdk",
            "Paper2D"
        });

        PrivateDependencyModuleNames.AddRange(new string[]
        {
            "UMG",
            "SlateCore",
            "Slate"
        });

Update GameManager.h as follows to set up the Unreal client connection to the server:

#pragma once

#include "CoreMinimal.h"
#include "GameFramework/Actor.h"
#include "ModuleBindings/SpacetimeDBClient.g.h"
#include "GameManager.generated.h"

class UDbConnection;

UCLASS()
class BLACKHOLIO_API AGameManager : public AActor
{
    GENERATED_BODY()

public:
    AGameManager();
    static AGameManager* Instance;

    UPROPERTY(EditAnywhere, Category="BH|Connection")
    FString ServerUri = TEXT("127.0.0.1:3000");
    UPROPERTY(EditAnywhere, Category="BH|Connection")
    FString DatabaseName = TEXT("blackholio");
    UPROPERTY(EditAnywhere, Category="BH|Connection")
    FString TokenFilePath = TEXT(".spacetime_blackholio");

    UPROPERTY(BlueprintReadOnly, Category="BH|Connection")
    FSpacetimeDBIdentity LocalIdentity;
    UPROPERTY(BlueprintReadOnly, Category="BH|Connection")
    UDbConnection* Conn = nullptr;

    UFUNCTION(BlueprintPure, Category="BH|Connection")
    bool IsConnected() const
    {
        return Conn != nullptr && Conn->IsActive();
    }

    UFUNCTION(BlueprintCallable, Category="BH|Connection")
    void Disconnect()
    {
        if (Conn != nullptr)
        {
            Conn->Disconnect();
            Conn = nullptr;
        }
    }

protected:
    virtual void BeginPlay() override;
    virtual void EndPlay(const EEndPlayReason::Type EndPlayReason) override;

public:
    // Called every frame
    virtual void Tick(float DeltaTime) override;

private:
    UFUNCTION()
    void HandleConnect(UDbConnection* InConn, FSpacetimeDBIdentity Identity, const FString& Token);
    UFUNCTION()
    void HandleConnectError(const FString& Error);
    UFUNCTION()
    void HandleDisconnect(UDbConnection* InConn, const FString& Error);
    UFUNCTION()
    void HandleSubscriptionApplied(FSubscriptionEventContext& Context);
};

Next, update GameManager.cpp to finalize the setup:

#include "GameManager.h"
#include "Connection/Credentials.h"

AGameManager* AGameManager::Instance = nullptr;

AGameManager::AGameManager()
{
    PrimaryActorTick.bCanEverTick = true;
    PrimaryActorTick.bStartWithTickEnabled = true;
}

void AGameManager::BeginPlay()
{
    Super::BeginPlay();
    Instance = this;

    FOnConnectDelegate ConnectDelegate;
    BIND_DELEGATE_SAFE(ConnectDelegate, this, AGameManager, HandleConnect);
    FOnDisconnectDelegate DisconnectDelegate;
    BIND_DELEGATE_SAFE(DisconnectDelegate, this, AGameManager, HandleDisconnect);
    FOnConnectErrorDelegate ConnectErrorDelegate;
    BIND_DELEGATE_SAFE(ConnectErrorDelegate, this, AGameManager, HandleConnectError);

    UCredentials::Init(*TokenFilePath);
    FString Token = UCredentials::LoadToken();

    UDbConnectionBuilder* Builder = UDbConnection::Builder()
                                                ->WithUri(ServerUri)
                                                ->WithDatabaseName(DatabaseName)
                                                ->OnConnect(ConnectDelegate)
                                                ->OnDisconnect(DisconnectDelegate)
                                                ->OnConnectError(ConnectErrorDelegate);

    if (!Token.IsEmpty())
    {
        Builder->WithToken(Token);
    }

    Conn = Builder->Build();
}

void AGameManager::EndPlay(const EEndPlayReason::Type EndPlayReason)
{
    Disconnect();
    if (Instance == this)
    {
        Instance = nullptr;
    }
    Super::EndPlay(EndPlayReason);
}

void AGameManager::Tick(float DeltaTime)
{
    if (IsConnected())
    {
        Conn->FrameTick();
    }
}

void AGameManager::HandleConnect(UDbConnection* InConn, FSpacetimeDBIdentity Identity, const FString& Token)
{
    UE_LOG(LogTemp, Log, TEXT("Connected."));
    UCredentials::SaveToken(Token);
    LocalIdentity = Identity;

    FOnSubscriptionApplied AppliedDelegate;
    BIND_DELEGATE_SAFE(AppliedDelegate, this, AGameManager, HandleSubscriptionApplied);
    Conn->SubscriptionBuilder()
        ->OnApplied(AppliedDelegate)
        ->SubscribeToAllTables();
}

void AGameManager::HandleConnectError(const FString& Error)
{
    UE_LOG(LogTemp, Log, TEXT("Connection error %s"), *Error);
}

void AGameManager::HandleDisconnect(UDbConnection* InConn, const FString& Error)
{
    UE_LOG(LogTemp, Log, TEXT("Disconnected."));
    if (!Error.IsEmpty())
    {
        UE_LOG(LogTemp, Log, TEXT("Disconnect error %s"), *Error);
    }
}

void AGameManager::HandleSubscriptionApplied(FSubscriptionEventContext& Context)
{
    UE_LOG(LogTemp, Log, TEXT("Subscription applied!"));
}

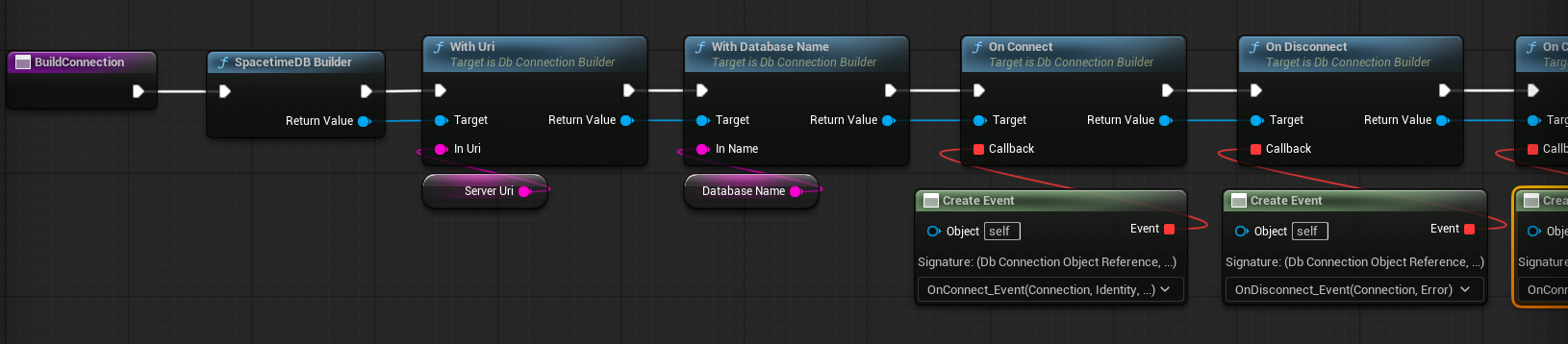

Here we configure the connection to the database, by passing it some callbacks in addition to providing the SERVER_URI and MODULE_NAME to the connection. When the client connects, the SpacetimeDB SDK will call the HandleConnect method, allowing us to start up the game.

In our HandleConnect callback we build a subscription and are calling Subscribe and subscribing to all data in the database. This will cause SpacetimeDB to synchronize the state of all your tables with your Unreal client's SpacetimeDB SDK's "client cache". You can also subscribe to specific tables using SQL syntax, e.g. SELECT * FROM my_table. Our SQL documentation enumerates the operations that are accepted in our SQL syntax.

SDK Client Cache

The "SDK client cache" is a client-side view of the database defined by the supplied queries to the Subscribe function. SpacetimeDB ensures that the results of subscription queries are automatically updated and pushed to the client cache as they change which allows efficient access without unnecessary server queries.

Now we're ready to connect the client and server. Press the play button in Unreal.

If all went well you should see the below output in your Unreal logs.

UWebsocketManager::Connect: Connecting to ws://127.0.0.1:3000/v1/database/blackholio/subscribe?
...
Connected.
Subscription applied!

Subscription applied indicates that the SpacetimeDB SDK has evaluated your subscription queries and synchronized your local cache with your database's tables.

We can also see that the server has logged the connection as well.

spacetime logs --server local blackholio
...
2025-01-10T03:51:02.078700Z DEBUG: src/lib.rs:63: c200fb5be9524bfb8289c351516a1d9ea800f70a17a9a6937f11c0ed3854087d just connected.

Next Steps​

You've learned how to setup a Unreal project with the SpacetimeDB SDK, write a basic SpacetimeDB server module, and how to connect your Unreal client to SpacetimeDB. That's pretty much all there is to the setup. You're now ready to start building the game.

In the next part, we'll build out the functionality of the game and you'll learn how to access your table data and call reducers in Unreal.
